Metal Mesh

metal mesh

Calendered Metal Mesh
Asada 3D-mesh®-Type 3D Metal Mesh
Application INDUSTRIAL

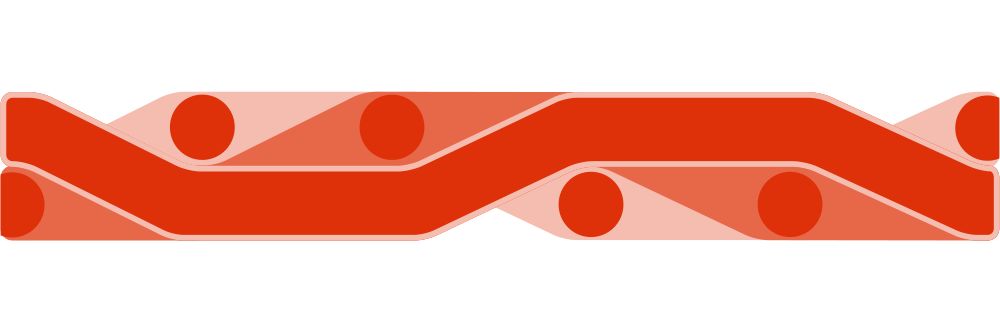

3D Metal Mesh is woven in a special structure that yields a mesh three times thicker than the wire diameter. This makes it possible to achieve 1.5 times higher printing thickness and remarkable leveling capability. 3D Mesh is especially suitable for thick coat printing.

Product Images
MESH CODE MESH COUNT /in MESH COUNT /cm WIRE DIAMETER in WIRE DIAMETER mm MESH OPENING in MESH OPENING mm OPEN AREA % STANDARD THICKNESS µm LIGHT CALENDERING THICKNESS µm MEDIUM CALENDERING THICKNESS µm HEAVY CALENDERING THICKNESS µm
3D-500-53 500 197 0.0007 0.019 0.0013 0.032 39 53±3 N/A N/A N/A
3D-400-54 400 157 0.0007 0.019 0.0018 0.045 49 54±3 N/A N/A N/A
3D-400-66 400 157 0.0009 0.023 0.0016 0.041 41 66±3 N/A N/A N/A
3D-325-77 325 128 0.0011 0.028 0.002 0.05 41 66±3 N/A N/A N/A
3D-250-85 250 98 0.0012 0.03 0.0028 0.072 50 85±3 N/A N/A N/A
3D-200-115 200 79 0.0016 0.04 0.0034 0.087 47 115±4 N/A N/A N/A
3D-165-126 165 65 0.0018 0.045 0.0043 0.109 50 126±5 N/A N/A N/A
3D-80-225 80 31 0.0031 0.08 0.0094 0.238 56 225±5 N/A N/A N/A

Questions? Interested in purchasing?
Call (800)235-5056 or click here to contact us about this product.

PDF
Asada Hardmesh-Type MS Metal Mesh
Application INDUSTRIAL

MS Mesh features excellent dimensional accuracy and printing durability by using material with 30% improved tensile strength over standard BS Mesh. MS Mesh is designed for fine line printing and can lay down 30 micron electrode lines in touch panel printing. Additionaly, newly developed 640 and 740 mesh are ideal for MLCC applications.

Product Images
MESH CODE MESH COUNT /in MESH COUNT /cm WIRE DIAMETER in WIRE DIAMETER mm MESH OPENING in MESH OPENING mm OPEN AREA % STANDARD THICKNESS µm LIGHT CALENDERING THICKNESS µm MEDIUM CALENDERING THICKNESS µm HEAVY CALENDERING THICKNESS µm
MS-730/13 730 287 0.0005 0.013 0.0009 0.022 40 28±2 N/A N/A 15±1
MS-640/15 640 252 0.0006 0.015 0.001 0.025 39 35±2 25±1 21±1 17±1
MS-400/19 400 157 0.0007 0.019 0.0018 0.045 49 39±2 30±2 23±1 18±1
MS-400/23 400 157 0.0009 0.023 0.0016 0.041 41 55±2 39±1 35±1 26±1
MS-325/24 325 128 0.0009 0.024 0.0021 0.054 48 51±2 44±2 38±2 N/A
MS-325/28 325 128 0.0011 0.028 0.002 0.05 41 58±2 55±2 45±2 N/A
MS-280/25 280 110 0.001 0.025 0.0026 0.066 52 51±2 48±2 40±1 N/A
MS-250/30 250 98 0.0012 0.03 0.0028 0.072 50 62±2 58±2 45±2 28±1

Questions? Interested in purchasing?
Call (800)235-5056 or click here to contact us about this product.

PDF
Asada Standard-Type BS Metal Mesh
Application INDUSTRIAL

BS Mesh is a standard mesh with a 25% higher tensile strength than conventional stainless steel mesh. As a standard mesh for screen printing, it has been adopted for wide use in applications such as fine line or thin deposit printing for MLCC.

Product Images
MESH CODE MESH COUNT /in MESH COUNT /cm WIRE DIAMETER in WIRE DIAMETER mm MESH OPENING in MESH OPENING mm OPEN AREA % STANDARD THICKNESS µm LIGHT CALENDERING THICKNESS µm MEDIUM CALENDERING THICKNESS µm HEAVY CALENDERING THICKNESS µm
BS-500/16 500 197 0.0006 0.016 0.0014 0.035 47 36±2 25±2 20±1 17±1
BS-500/19 500 197 0.0007 0.019 0.0013 0.032 39 41±2 30±2 25±1 19±1
BS-500/18 500 197 0.0007 0.018 0.0013 0.033 42 39±2 30±2 25±1 19±1
BS-400/18 400 157 0.0007 0.018 0.0018 0.046 51 39±2 30±2 23±1 N/A
BS-400/19 400 157 0.0007 0.019 0.0018 0.045 49 39±2 30±2 23±1 N/A
BS-400/23 400 157 0.0009 0.023 0.0016 0.041 41 55±2 40±2 35±1 24±1
BS-400/25 400 157 0.001 0.025 0.0015 0.039 37 57±2 49±2 40±1 N/A
BS-325/23 325 128 0.0009 0.023 0.0022 0.055 50 51±2 41±2 37±2 24±1
BS-325/28 325 128 0.0011 0.028 0.002 0.05 41 62±2 55±2 47±1 N/A
BS-325/30 325 128 0.0012 0.03 0.0019 0.048 38 62±2 60±2 42±1 N/A
BS-300/30 300 118 0.0012 0.03 0.0022 0.055 42 68±2 59±2 44±1 N/A
BS-280/30 280 110 0.0012 0.03 0.0024 0.061 45 64±2 59±2 49±2 N/A
BS-270/35 270 106 0.0014 0.035 0.0023 0.059 39 77±2 70±2 58±2 N/A
BS-250/28 250 98 0.0011 0.028 0.0029 0.074 52 56±2 53±2 45±2 N/A
BS-250/30 250 98 0.0012 0.03 0.0028 0.072 50 62±2 58±2 45±2 N/A
BS-250/35 250 98 0.0014 0.035 0.0026 0.067 43 78±2 64±2 55±2 N/A
BS-250/40 250 98 0.0016 0.04 0.0024 0.062 37 90±3 86±2 67±2 N/A
BS-230/28 230 91 0.0011 0.028 0.0032 0.082 56 56±3 54±2 45±2 N/A
BS-230/35 230 91 0.0014 0.035 0.003 0.075 47 75±3 67±2 56±2 N/A
BS-200/30 200 79 0.0012 0.003 0.0038 0.097 58 62±2 58±2 45±2 N/A
BS-200/40 200 79 0.0016 0.04 0.0034 0.087 47 82±3 77±2 65±2 N/A
BS-200/53 200 79 0.0021 0.0053 0.0029 0.074 34 105±4 N/A N/A N/A
BS-180/45 180 71 0.0018 0.045 0.0038 0.096 46 98±3 N/A N/A N/A
BS-165/45 165 65 0.0018 0.045 0.0043 0.109 50 95±3 N/A N/A N/A
BS-165/50 165 65 0.002 0.05 0.0041 0.104 46 102±3 N/A N/A N/A
BS-150/65 150 65 0.0026 0.065 0.0041 0.103 37 133±3 N/A N/A N/A

Questions? Interested in purchasing?
Call (800)235-5056 or click here to contact us about this product.

PDF
Asada Supermesh-Type HS & SHS Metal Mesh
Application INDUSTRIAL

HS & SHS Mesh is suitable for high viscosity paste. The wire material has 3 times higher strength than BS and only 5% elongation. The wire thread is woven at an open ratio of 60%. It is appropriate for solder or paste laydown.

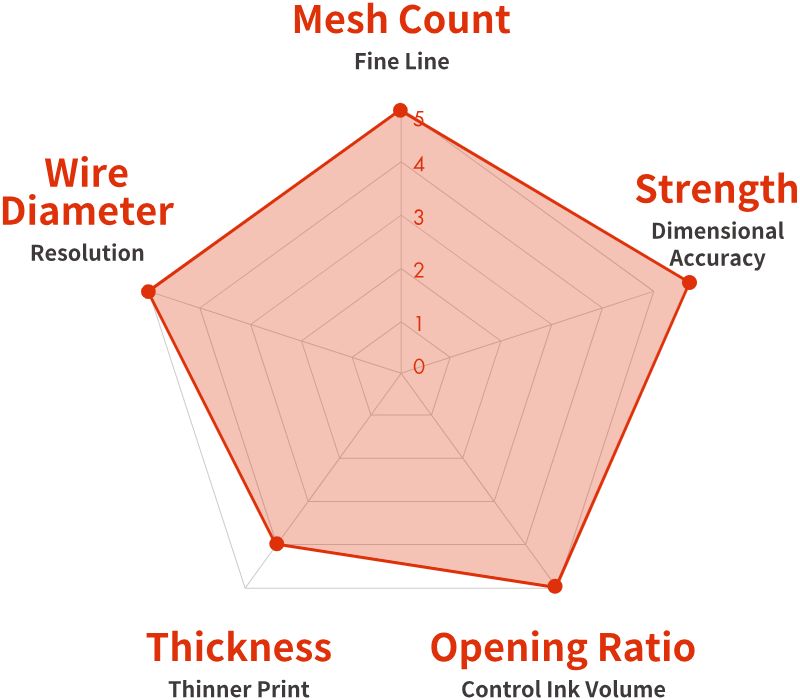

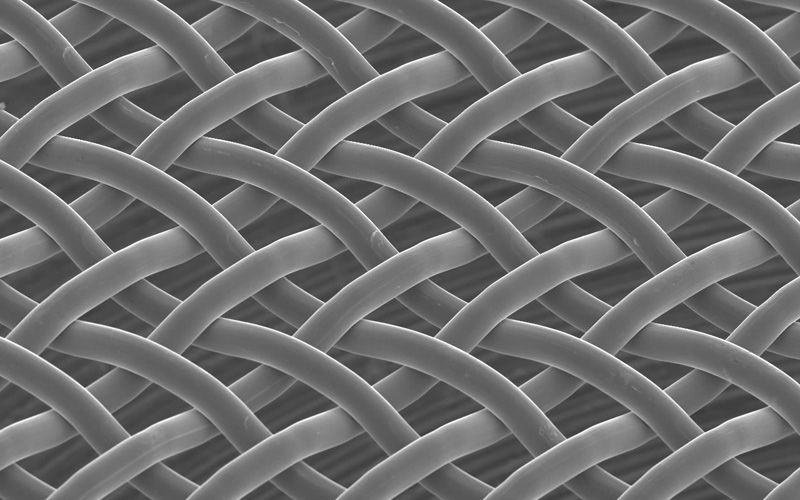

Product Images
MESH CODE MESH COUNT /in MESH COUNT /cm WIRE DIAMETER in WIRE DIAMETER mm MESH OPENING in MESH OPENING mm OPEN AREA % STANDARD THICKNESS µm LIGHT CALENDERING THICKNESS µm MEDIUM CALENDERING THICKNESS µm HEAVY CALENDERING THICKNESS µm
SHS-380/14 380 150 0.0006 0.014 0.0021 0.053 62 32±2 26±2 20±1 14±1
SHS-360/16 360 142 0.0006 0.016 0.0022 0.055 60 36±3 32±2 20±1 16±1
SHS-325/16 325 128 0.0006 0.016 0.0024 0.062 63 35±3 32±2 20±1 18±1
SHS-290/20 290 114 0.0008 0.02 0.0027 0.068 60 45±3 36±2 30±1 22±1
SHS-230/25 230 91 0.001 0.025 0.0033 0.085 60 55±3 N/A N/A N/A
HS-380/14 380 150 0.0006 0.014 0.0021 0.053 62 33±2 26±2 20±1 14±1
HS-360/16 360 142 0.0006 0.016 0.0022 0.055 60 36±3 32±2 20±1 17±1
HS-325/16 325 128 0.0006 0.016 0.0024 0.062 63 35±2 32±2 20±1 17±1
HS-290/20 290 114 0.0008 0.02 0.0027 0.068 60 45±2 36±2 30±1 21±1
HS-250/20 250 98 0.0008 0.02 0.0032 0.082 65 44±2 N/A N/A N/A
HS-230/25 230 91 0.001 0.025 0.0033 0.085 60 55±2 N/A N/A N/A
HS-D500/19 500 197 0.0007 0.019 0.0013 0.032 39 45±2 N/A 35±2 25±1
HS-D400/20 400 157 0.0008 0.02 0.0017 0.044 47 45±2 39±2 35±2 N/A
HS-D325/24 325 128 0.0009 0.024 0.0021 0.054 48 55±2 N/A 45±2 N/A

Questions? Interested in purchasing?
Call (800)235-5056 or click here to contact us about this product.

PDF
NBC M10 Metal Mesh
Application INDUSTRIAL

M-10 is NBC’s standard stainless steel wire mesh produced with rigorous quality control. It is widely used for many precision screen printing applications such as printed circuit boards, membrane switches, solar cells, ceramic packages, capacitors and more. The reliable quality and print repeatability are well recognized within these high-end markets.

Product Images
MESH CODE MESH COUNT /in MESH COUNT /cm WIRE DIAMETER µm MESH OPENING µm OPEN AREA % Theoretical Ink Vol cm³/m² THICKNESS µm (normal) THICKNESS µm (standard calender) THICKNESS µm (heavy calender) THICKNESS µm (super heavy calender)
M10-120-080 132/80 120 47 80 132 39 62 160±3 N/A N/A N/A
M10-150-060 109/60 150 59 60 109 42 50 120±3 N/A N/A N/A
M10-150-065 104/65 150 59 65 104 38 49 130±3 N/A N/A N/A
M10-165-045 109/45 165 65 45 109 50 45 90±2 N/A N/A N/A
M10-180-050 91/50 180 71 50 91 42 42 100±3 N/A N/A N/A
M10-200-040 87/40 200 79 40 87 47 38 80±2 63 56 50
M10-230-035 75/35 230 91 35 75 47 31 66±2 N/A N/A N/A
M10-250-030 72/30 250 98 30 72 50 30 60±2 45 40 35
M10-250-035 67/35 250 98 35 67 43 28 65±2 N/A N/A N/A
M10-280-035 56/35 280 110 35 56 38 25 65±2 N/A N/A N/A
M10-300-030 55/30 300 118 30 55 42 28 68±2 52 46 40
M10-325-028 50/28 325 128 28 50 41 26 64±2 46 42 35
M10-325-030 48/30 325 128 30 48 38 26 68±2 55 50 45
M10-400-019 45/19 400 157 19 45 49 19 39±2 28 25 22
M10-400-023 41/23 400 157 23 41 41 22 55±2 40 35 30
M10-500-019 32/19 500 197 19 32 39 16 41±2 30 25 22

Questions? Interested in purchasing?
Call (800)235-5056 or click here to contact us about this product.

PDF
NBC M13 Metal Mesh
Application INDUSTRIAL

M-13 is an upgraded NBC stainless steel wire mesh woven with 30% stronger stainless steel wire compared to standard stainless steel wire. The extra tensile strength of M-13 achieves higher screen tension and optimizes printing parameters for further improvement of dimensional accuracy, and prolongs screen service life.

Product Images
MESH CODE MESH COUNT /in MESH COUNT /cm WIRE DIAMETER µm MESH OPENING µm OPEN AREA % Theoretical Ink Vol cm³/m² THICKNESS µm (normal) THICKNESS µm (standard calender) THICKNESS µm (heavy calender) THICKNESS µm (super heavy calender)
M13-325-023 55/23 325 128 23 55 50 25 50±2 38 31 28
M13-400-019 45/19 400 157 19 45 49 19 39±2 28 25 22
M13-400-023 41/23 400 157 23 41 41 22 55±2 40 35 30
M13-500-016 35/16 500 197 16 35 47 17 36±2 25 20 18
M13-500-019 32/19 500 197 19 32 39 16 41±2 30 25 22
M13-640-015 25/15 640 252 15 25 39 14 35±2 25 21 18
M13-730-013 22/13 730 287 13 22 39 11 28±2 21 17 15

Questions? Interested in purchasing?
Call (800)235-5056 or click here to contact us about this product.

PDF
NBC M30 Metal Mesh
Application INDUSTRIAL

M-30 metal mesh has exceptionally low elongation and large mesh open area. It is woven with stainless steel wire with 3 times stronger tensile strength than that of standard stainless steel wire. It minimizes mesh interference to the print image while ensuring excellent paste transition. As a result, it is suitable for challenging applications utilizing high viscosity paste, such as solar cell, MLCC, LTCC and others.

Product Images
MESH CODE MESH COUNT /in MESH COUNT /cm WIRE DIAMETER µm MESH OPENING µm OPEN AREA % Theoretical Ink Vol cm³/m² THICKNESS µm (normal) THICKNESS µm (standard calender) THICKNESS µm (heavy calender) THICKNESS µm (super heavy calender)
M30-250-020 82/20 250 98 20 82 65 29 45±2 N/A 30 25
M30-290-020 68/20 290 114 20 68 60 27 45±2 N/A 30 25
M30-325-016 62/16 325 128 16 62 63 22 35±2 26 22 20
M30-360-016 55/16 360 142 16 55 60 22 36±2 26 22 20
M30-380-014 53/14 380 150 14 53 62 20 32±2 26 21 18
M30-430-013 46/13 430 169 13 46 61 18 29±2 N/A 21 17

Questions? Interested in purchasing?
Call (800)235-5056 or click here to contact us about this product.

PDF
NBC W40 Metal Mesh
Application INDUSTRIAL

W-40 metal mesh is woven with tungsten wire, which has greater physical stability and print repeatability than even NBC super stainless steel wire mesh.

MESH CODE MESH COUNT /in MESH COUNT /cm WIRE DIAMETER µm MESH OPENING µm OPEN AREA % Theoretical Ink Vol cm³/m² THICKNESS µm (normal) THICKNESS µm (standard calender) THICKNESS µm (heavy calender) THICKNESS µm (super heavy calender)
W40-325-016 62/20 325 128 16 62 63 23 36±2 25 22 N/A
W40-380-014 53/16 380 150 14 53 62 20 32±2 26 21 18
W40-430-013 46/13 430 169 13 46 61 18 29±2 N/A 21 17

Questions? Interested in purchasing?
Call (800)235-5056 or click here to contact us about this product.

PDF
